Diaphragm Pump

Chamco is proud to distribute Versamatic air-operated double diaphragm (AODD) pumps, recognized throughout the industry for raising the bar on performance and versatility.

Contact The Experts

Robust Diaphragm Pumps for Low-Pressure
Fluid Transfer Applications

Chamco’s air-operated double diaphragm pumps deliver exceptional performance across a wide range of applications, from pumping clean water to moving solid-laden wastewater. Each industrial diaphragm pump is built for durability and high efficiency, so your operation stays running in a variety of demanding environments.
Let us know your pump requirements, and we’ll help you select the most suitable air diaphragm pump for your specific application.
Talk To An Expert
Sullair oil free air compressors.

Versamatic Air-Operated
Double-Diaphragm Pumps

For more than 30 years, Versamatic has been at the forefront of advancing air-operated double-diaphragm pump technology. Each Versamatic positive displacement diaphragm pump features two diaphragms that operate under balanced pressure to move fluid while minimizing wear.

Versamatic AODD pumps come in a range of flow rates and sizes to suit your unique application. Many models come in different materials, including bolted plastic, stainless steel, or bolted and clamped aluminum.

¼” (6mm) AODD Pump

1/4” (6mm) Plastic AODD Pumps

  • Flow Rate: 0-5 GPM
    Port Size: Suction – ¼” NPT | Discharge – ¼” NPT
    Suction Lift: Dry – 8′ (2.44 m)
    Max Solid Size (Diameter): 1⁄32 ” (1 mm)
    Max Noise Level: 78 dB(A)

3/8″ (10mm) Bolted Plastic AODD Pumps

  • Flow Rate: 0-6.8 GPM
    Port Size: ⅜” NPT | Discharge – ⅜” NPT
    Suction Lift: Dry – 8′ (2.44 m)
    Max Solid Size (Diameter): 0.10″ (2.25 mm)
    Max Noise Level: 78 dB(A)
⅜” (10mm) Bolted Plastic AODD Pump
½” (13mm) Bolted Plastic AODD Pump

1/2″ (13MM) Bolted Plastic AODD Pumps (Also Available in Bolted Metal)

  • Flow Rate: 0-12 GPM
    Port Size: Suction – ½” NPT | Discharge – ½” NPT
    Suction Lift: Dry – 13′ (3.9 m) | Wet – 22′ (6.7 m)
    Max Solid Size (Diameter): 1/16” (1.6 mm)
    Max Noise Level: 84 dB(A)

3/4” (19mm) Bolted Metal AODD Pumps (Also Available in Full Stainless)

  • Flow Rate: 0-12 gpm
    Port Size: Inlet – ¾” NPT | Discharge – ¾” NPT
    Suction Lift: Dry – 13′ (3.9 m)| Wet – 23′ (6.7 m)
    Max Solid Size (Diameter): 1/16” (1.6 mm)
    Max Noise Level: 84 dB(A)
¾” (19mm) Bolted Metal AODD Pump
1” (25mm) Bolted Metal AODD Pump

1” (25mm) Bolted Metal ATEX AODD Pump (Also Available in Bolted Plastic & Full Stainless)

  • Flow Rate: 0-49 gpm
    Port Size: Suction/Discharge – 1″ NPT
    Suction Lift: Dry – 15′ (4.6 m) | Wet – 31′ (9.4 m)
    Max Solid Size (Diameter): ⅛” (3.2 mm)
    Max Noise Level: 91 dB(A)

1 1/2” (38mm) Clamped Metal AODD Pumps (Also Available in Bolted Metal, Bolted Plastic & Full Stainless)

  • Flow Rate: 0-71 GPM
    Port Size: Suction – 1 ½” NPT | Discharge – 1 ¼” NPT
    Suction Lift: Dry – 19′ (5.8 m) | Wet – 31′ (9.4 m)
    Max Solid Size (Diameter): 3/16” (4.76 mm)
    Max Noise Level: 101 dB(A)
11/2” (38mm) Bolted Metal AODD Pump
2” (51mm) Bolted Plastic AODD Pump

2” (51mm) Bolted Plastic AODD Pumps (Also Available in Bolted Metal ATEX & Clamped Metal ATEX)

  • Flow Rate: 0-192 gpm
    Port Size: Suction/Discharge 2” ANSI/DIN #50 Flange
    Suction Lift: Dry Rubber – 20′ (6.1 m) | PTFE – 10′ (3.05 m)
    Max Solid Size (Diameter): ¼” (6 mm)
    Max Noise Level: 92 dB(A)

3”(76mm) Bolted Metal AODD Pumps (Also Available in Bolted Plastic & Full Stainless)

  • Flow Rate: 0-273 GPM
    Port Size: Suction/Discharge – 3″ ANSI 150 lbs. Class (DIN80)
    Suction Lift: Dry – 16′ (4.9 m) | Wet – 31′ (9.4 m)
    Max Solid Size (Diameter): ⅜” (9.5 mm)
    Max Noise Level: 93 dB(A)
3” (76mm) Bolted Metal AODD Pump

Why Purchase a Diaphragm Pump
from Chamco?

Chamco is an industry leader in pump solutions, and that reputation comes from staying dedicated to supporting you throughout your air-operated double diaphragm pump’s lifecycle.
Sullair OEM compressor parts

A Full Suite of OEM Pump Parts

As the exclusive Versamatic distributor in Western Canada, Chamco keeps a wide range of OEM parts in stock for fast, dependable delivery. By choosing OEM replacement parts, you ensure your pump continues to deliver the superior performance you’ve come to trust.

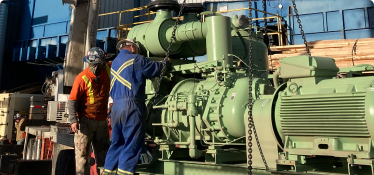

Chamco technician works on air compressors

Comprehensive Service & Maintenance Support

When unexpected pump issues arise, Chamco’s service technicians are here to help. Our team provides essential maintenance and pump services and is available to handle emergency situations, minimizing disruptions to your operations.
Chamco service truck

Decades of Pump Service Expertise

For more than six decades, Chamco has supported customers with dependable pump products and services. With mandatory specialized factory training, our experienced apprentice millwrights/electricians are guaranteed to provide you with unparalleled service throughout your pump’s lifetime.

Frequently Asked Questions

Yes, Chamco provides comprehensive installation services for diaphragm pumps. Tailoring the process to meet your specific operational requirements, our team handles the setup to deliver optimal performance. That includes expert guidance, seamless integration with your existing systems, and post-installation support to maximize efficiency and longevity on track.

A self-priming pump can evacuate air from the pump chamber and initiate fluid flow without external assistance. This capability matters most in suction-lift applications such as emptying a tank or pit, where you’d otherwise need to prime the pump by hand or add separate priming equipment. Because self-priming pumps tolerate some air or gas in the fluid, they can continue running under conditions that would interrupt other pump types, improving operational efficiency and simplifying maintenance.

Yes. AODD pumps are available in stainless steel, metal, and plastic, so you can match the pump’s construction to your fluid and avoid premature corrosion. This makes them suitable for challenging chemical or slurry applications.

Yes, Chamco’s comprehensive maintenance services for diaphragm pumps cover part replacements, routine inspections, and troubleshooting. Our 24/7 service support ensures minimal downtime, and our team of factory-trained technicians can handle repairs for any air-operated double diaphragm pump throughout its lifecycle.

Air-operated diaphragm pumps run on compressed air, using an air valve to move the diaphragms back and forth. Electric diaphragm pumps use a motor to drive the diaphragm instead. AODD pumps are often the better choice in wash-down areas, hazardous locations, or anywhere a spark from electrical equipment is a safety concern, since they have no electrical components in the pump itself.

Pump size depends on your required flow rate, the fluid’s viscosity and solids content, and your suction and discharge port requirements. Chamco’s team reviews your application details, including flow rate targets and line size, to recommend the right industrial diaphragm pump from the Versamatic lineup.

Yes. Versamatic AODD pumps are compatible with hydraulic fluid when fitted with the correct diaphragm and seal material for that fluid’s chemical makeup. Talk to Chamco’s team about your specific hydraulic fluid before ordering to confirm the right elastomer and wetted-part combination.

We take pride in partnering with leading pump manufacturers, such as Versamatic, to ensure the highest quality and reliability in every engineered system we deliver. Chamco also works with other trusted manufacturers for engineered pump and compressor systems, including Sullair, Vanair, Omega, Peerless, Cornell, and Grundfos.
Tell Us About Your Diaphragm Pump Needs

Contact Chamco’s experts to discover the diaphragm pump that best suits your specific application and operating environment.
